Outdoor Waterproof Fiber Optic Pigtails SC

Part No.: FOCBS00112
with FC/ST/LC/SC Connector

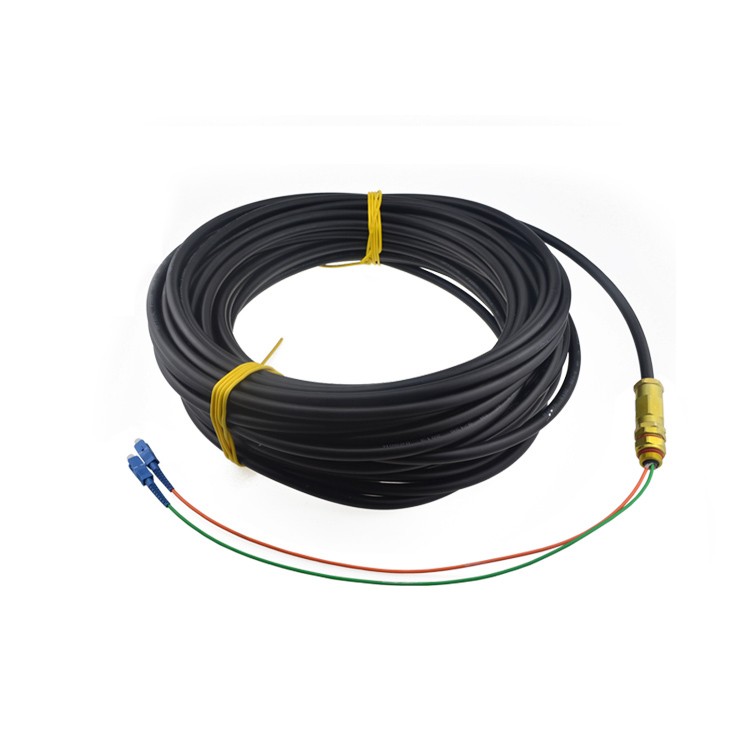

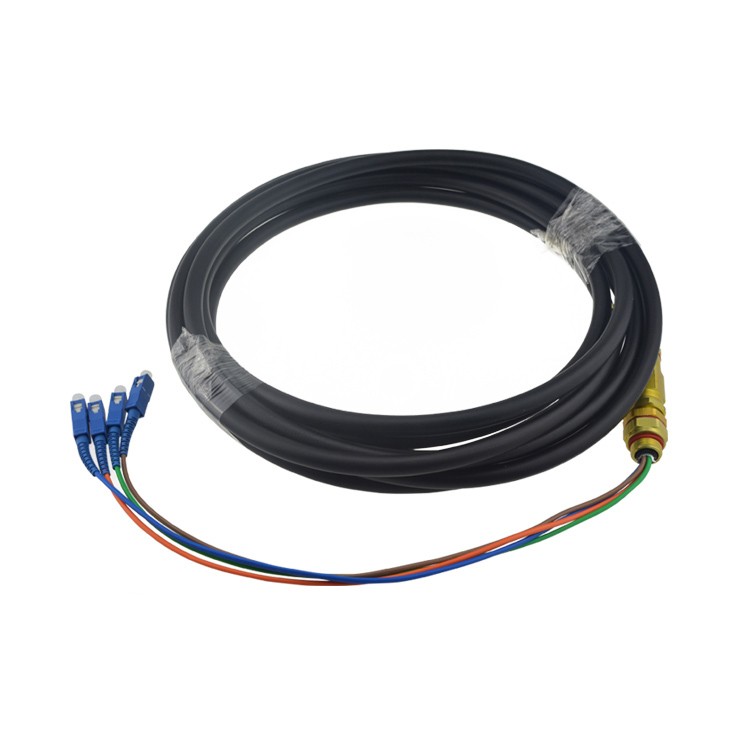

Outdoor Waterproof Fiber Optic Pigtails with SC Connector

Applications

1. Optical fiber pigtail, also named

2. CATV, IPTV, etc

3. Optical fiber communication systems

4. Optical fiber data transmission

5. Building network access

6. Cabling system, ODF

7. FTTx applications

Features

1. Adopts high precision ceramic ferrule with good concentricity.

2. Compact & strong crimping offers exceptional tensile strength in cable assemblies.

3. Low insertion loss & high return loss, clean and scratch-free endfaces.

4. Low-Smoke Zero-Halogen(LSZH) available by special order.

5. PC or APC polish style connectors.

Parameters

Parameter

Unit

FC, SC, LC

ST, MU

MT-RJ, MPO

E2000

UPC

APC

UPC

APC

Insertion loss(typical)

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

Return loss

≥45

≥50

≥60

≥30

≥45

≥50

≥30

≥45

≥50

≥35

≥55

≥75

Operating wavelength

1310, 1510

Exchangeability

≤0.2

Vibration

≤0.2

Operating temperature

°C

-40~75

Storage temperature

°C

-45~85

Cable diameter

φ3.0, φ2.0, φ0.9
