Part No.: FOCBS00104
12-core colorful pigtail can be classified to FC, SC, LC, MU and ST. The color of pigtail is Blue, Orange, Green, Brown, Gray, White, Red, Black,Yellow, Purple, Pink, Aqua. With the High-quality ceramic ferrules,it has good conformity and low Insertion Loss.

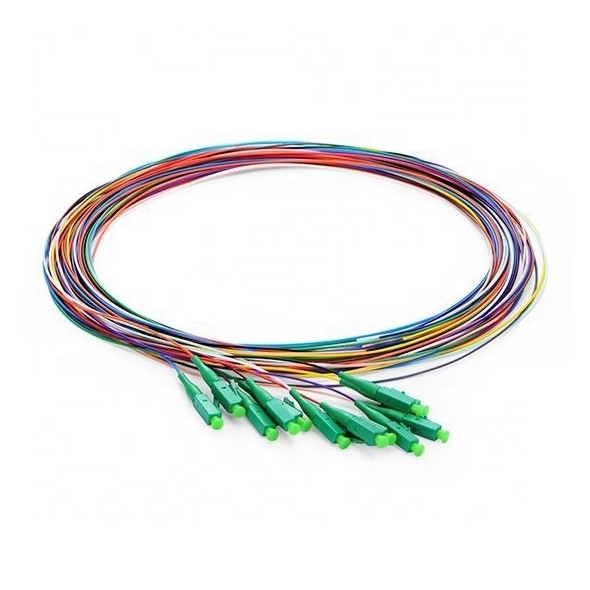

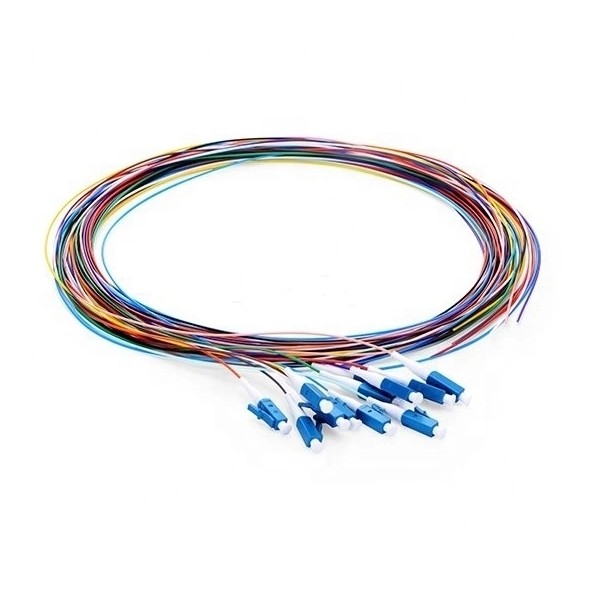

Fiber Optic Pigtail Set 12 color LC
Specifications
12-core colorful pigtail can be classified to FC, SC, LC, MU and ST. The color of pigtail is Blue, Orange, Green, Brown, Gray, White, Red, Black,Yellow, Purple, Pink, Aqua. With the High-quality ceramic ferrules,it has good conformity and low Insertion Loss.
– Low insertion loss and high return loss;
– Good repeatability & interchangeability;
– PC, UPC, APC polishing; FC, SC, ST, LC, MU connector;
– Suitable for high-speed, high-capacity optical fiber transmission system;
– Provide single mode/ multimode patch cord and pigtails;
– Fiber diameter: Φ0.9mm, Φ2.0mm, Φ3.0mm;
– Length/Type: according to customers' demands.
Parameter | SC, LC,FC,ST Fiber patch cord | |||
SM | MM | |||
PC | UPC | APC | PC | |
Insertion loss(typical) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
Return loss | ≥45 | ≥50 | ≥60 | ≥30 |
Interchangeability | ≤0.2dB | |||
Salt Spray | ≤0.1dB | |||
Repeatability | ≤0.1dB (1000 times) | |||
Vibration | ≤0.2dB (550Hz 1.5mm) | |||
Temperature | ≤0.2dB (-40+85 sustain 100 hours) | |||
Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) | |||
Apex Offset | 0μm ~ 50μm | |||
Radius of Curvature | 7mm ~ 25mm |
