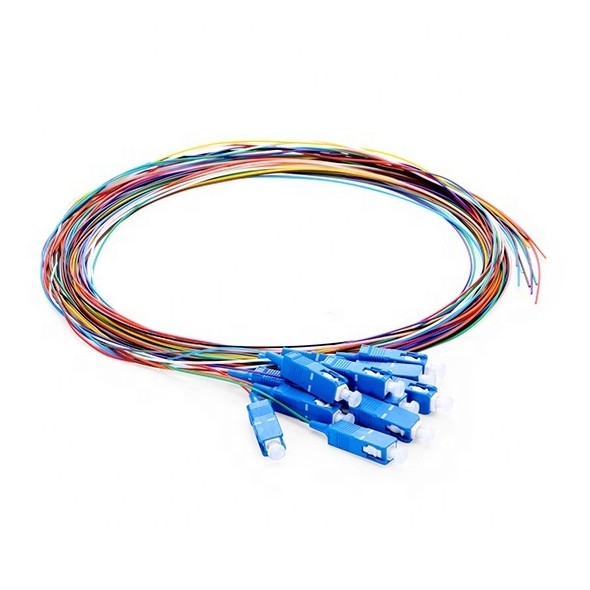

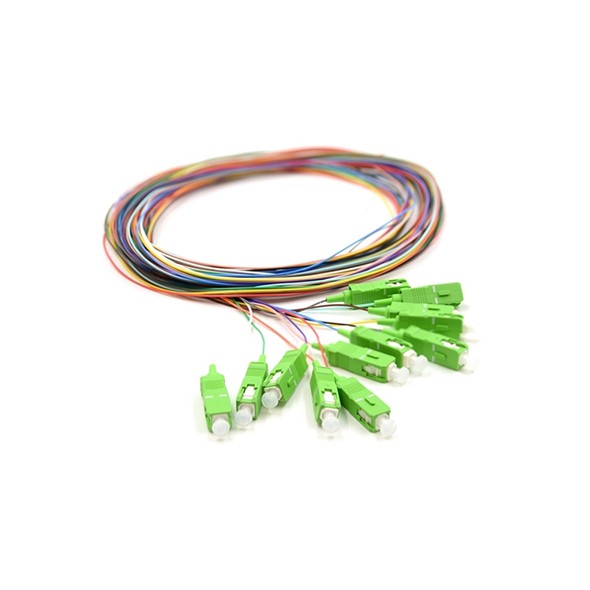

Fiber Optic Pigtail Set 12 Color SC

Part No.: FOCBS00105
12-core colorful pigtail can be classified to FC, SC, LC, MU and ST. The color of pigtail is Blue, Orange, Green, Brown, Gray, White, Red, Black,Yellow, Purple, Pink, Aqua. With the High-quality ceramic ferrules,it has good conformity and low Insertion Loss.

  EMAIL


Fiber Optic Pigtail Set 12 color SC


Specifications

12-core colorful pigtail can be classified to FC, SC, LC, MU and ST. The color of pigtail is Blue, Orange, Green, Brown, Gray, White, Red, Black,Yellow, Purple, Pink, Aqua. With the High-quality ceramic ferrules,it has good conformity and low Insertion Loss.


Features:

– Low insertion loss and high return loss;
– Good repeatability & interchangeability;
– PC, UPC, APC polishing; FC, SC, ST, LC, MU connector;
– Suitable for high-speed, high-capacity optical fiber transmission system;
– Provide single mode/ multimode patch cord and pigtails;
– Fib
er diameter: Φ0.9mm, Φ2.0mm, Φ3.0mm;
– Length/Type: according to customers' demands.



Parameter

SC, LC,FC,ST Fiber patch cord


SM

MM


PC

UPC

APC

PC

Insertion loss(typical)

≤0.3

≤0.3

≤0.3

≤0.3

Return loss

≥45

≥50

≥60

≥30

Interchangeability

≤0.2dB

Salt Spray

≤0.1dB

Repeatability

≤0.1dB (1000 times)

Vibration

≤0.2dB (550Hz 1.5mm)

Temperature

≤0.2dB (-40+85 sustain 100 hours)

Humidity

≤0.2dB (+25+65 93 R.H.100 hours)

Apex Offset

0μm ~ 50μm

Radius of Curvature

7mm ~ 25mm
