Fiber Optic MPO Fanout Pigtail FC

Part No.: FOCBS00107
Low insertion loss and high reflection loss
Good Durability,High stability
Good exchangeability
Male and female connector type
Muti core optical fiber connector
CATV
Optical fiber communication system
Data processing
test equipment

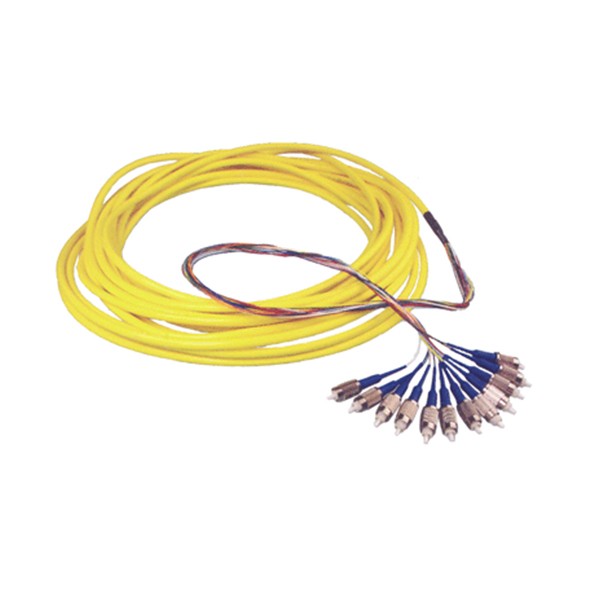

MPO fanout pigtail FC

Description

MPO fiber cable is applicable in data and telecommunications systems. The MPO fiber cable connector offers up to 12 times the density of standard connectors, providing space and cost saving. It used the plug-in lock structure and easy to operate.

Features

Low insertion loss and high reflection loss

Good Durability,High stability

Good exchangeability

Male and female connector type

Muti core optical fiber connector

CATV

Optical fiber communication system

Data processing

test equipment

Specifications

Insertion Loss dB	≤0.35
Return Loss dB	≥50 for PC, ≥65 for APC
Tensile dB	≤0.30( Max 66N)
Vibration dB	≤0.30 (10~ 50HZ)
Operating Temperature dB	≤0.30 ( -40°C ~ +75°C 5Cycles )

SHENZHEN BESKCO TECHNOLOGY LIMITED Founded in 2009. We are a leading professional manufacturer for FTTH Fiber optic product. BESKCO offers a wide range of telecommunication products and also has the ability for customerized product according to customers’ needs. We always strive for being the communication systems integrator and optical solution provider leader.
