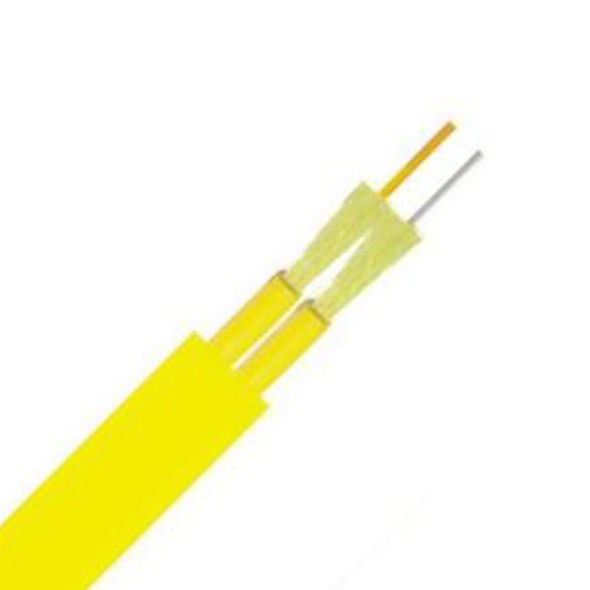

Fiber Optic Flat Twin Duplex Indoor

Part No.: FOCBS0079
Easy to splice
Tight buffer (900um or 600um)
Suitable for connectors


Flat Twin Duplex Military Tactical Indoor Fiber Cable

Application:

Components for indoor cables.

Suitable for patch cords and pigtails.

Suitable for communication equipment served.

Suitable for intensive place,can be installed conveniently

Specifications:

Easy to splice

Tight buffer.(900um or 600um) Suitablesuit for connectors

Structure Characters:

Two single-fiber as basic unit.flat twin configuration

Single-cable with independent strength member

As pigtail of communication equipment and cable for patchcord and connectors.

Technical Parameters:

Out sheath Diameter	Inner sheath Diameter	Weight	Minimum allowable Tensile Strength (N)		minimum allowable Crush Load (N/100mm)		Minimum Bending Radius (MM)		Storage temperature
(MM)	(MM)	(KG)	short term	long term	short term	long term	short term	long term	(°C)
3.0×5.0	1.8	56.00	800	300	1000	500	20D	10D	-20+60
3.2x5.6	2.0	68.00	800	300	1000	500	20D	10D	-20+60
4.0x7.0	2.8	87.00	800	300	1000	500	20D	10D	-20+60
