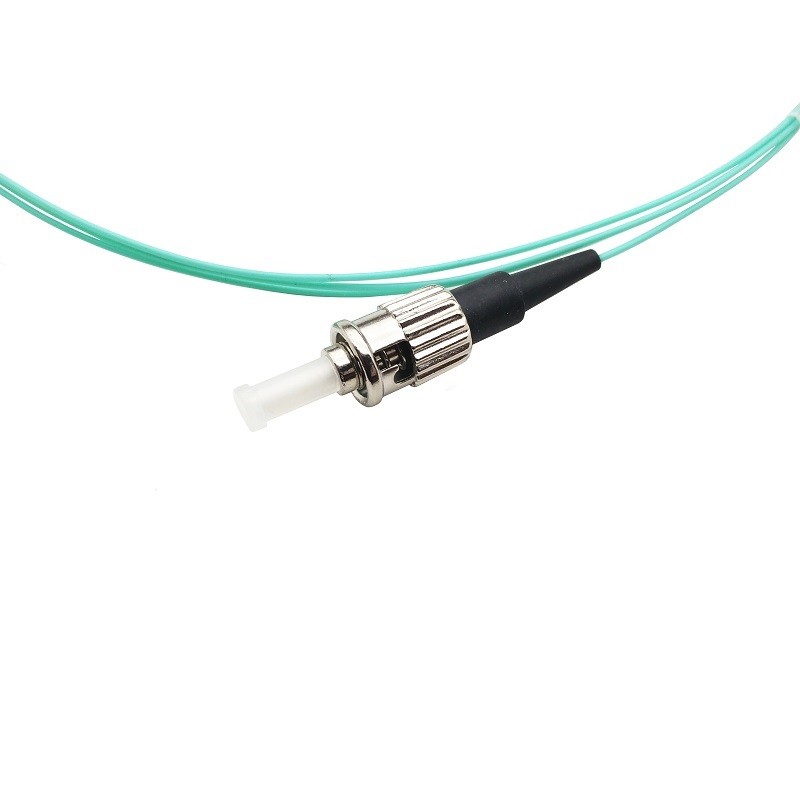

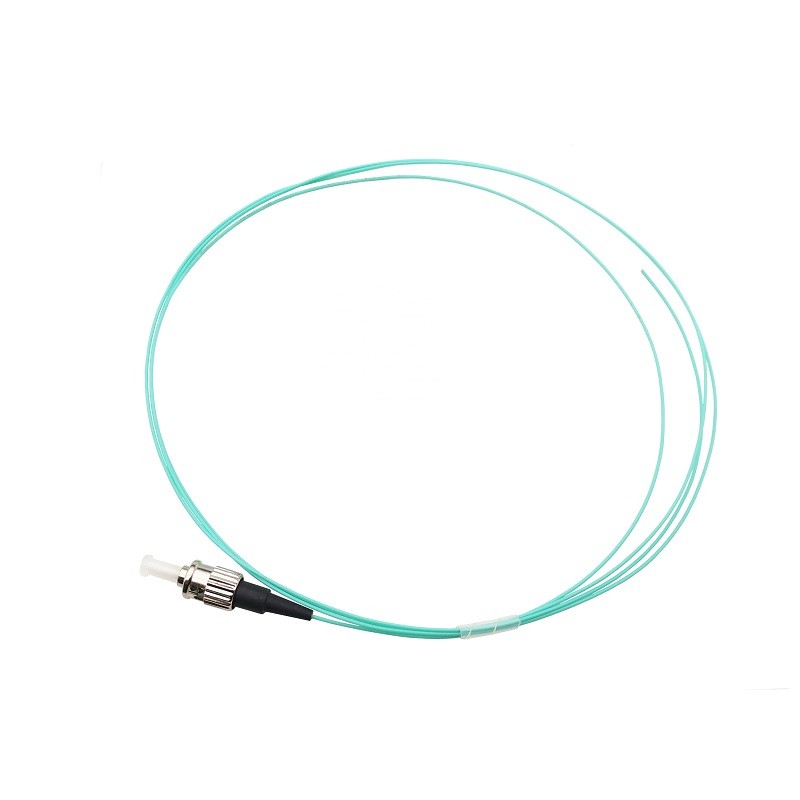

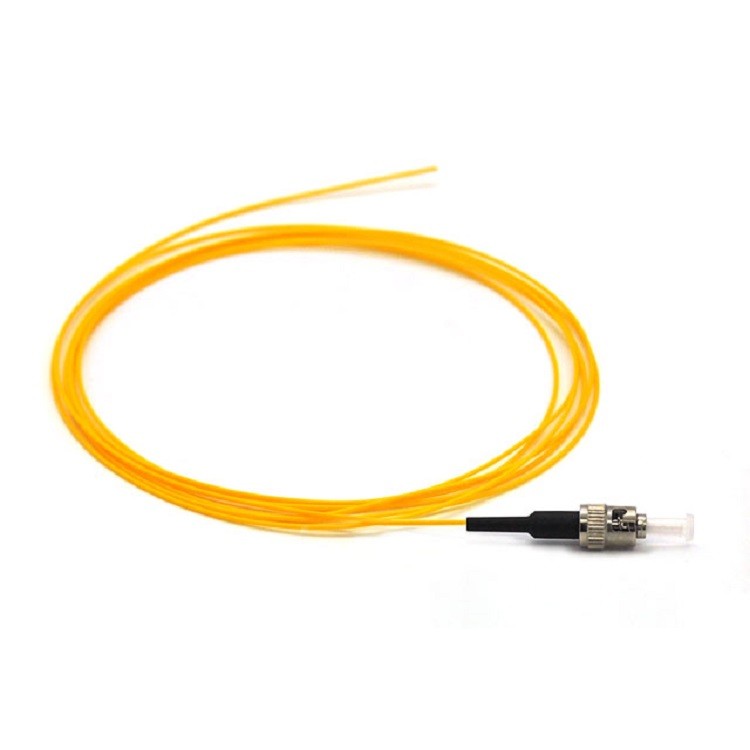

Fiber Optic Pigtail ST SM

Part No.: FOCBS00116
Fiber class: Single-mode multimode

Polish type: UPC/APC


ST SC LC FC ST MTRJ E2K MU MPO single mode multimode OM1 OM2 OM3 OM4 OM5 fiber optical pigtails

Features:

· Many standard configurations in stock

· All standard fiber types available

· Many different cable designs available

· Many different connector options available

· 100% optical testing available

· 100% electronic testing available

· End face geometry (EFG) testing capabilities

· Design/engineering capabilities

Application:

·Optical access network

·Optical-fiber CATV

·A local area network(LAN)

·Test Equipment

Specification:

Parameter	LC,SC,ST,FC
	SM		MM
	UPC	APC	UPC
Operating Wavelength(nm)	1310/1550		850/1300
Insertion Loss(dB)	≤0.20	≤0.20	≤0.20
Return Loss(dB)	≥55	≥65	≥35
Repeatability Loss(dB)	≤0.1
Interchangeability Loss(dB)	≤0.20
Repeat Piug-pull Times	≥1000
Tensil Strength(N)	≥100
Durability Loss(dB)	≤0.20
Operating Temperature(℃)	-40℃~ +75℃
Storage Temperature(℃)	-40℃~85℃

Fiber class: Single-mode multimode

Polish type: UPC/APC

Cable color: as photos

Cable jacket: PVC LSZH OFNR OFNP

Cable diameter: 0.9,1.6,1.8,2.0,3.0mm

Package: Seperate polybag with sticker and test reports

The cable Length and color can be customized
