Fiber Optic Transceiver 20KM SC Module

Part No.: FOCBS00153
EPON SFP PX20+++：1.25Gbps/1.25Gbps, Class PX20+++,0ºC ~ +70ºC With Digital Diagnostic Monitoring
Wavelength：Tx1310nm, Rx 1490nm

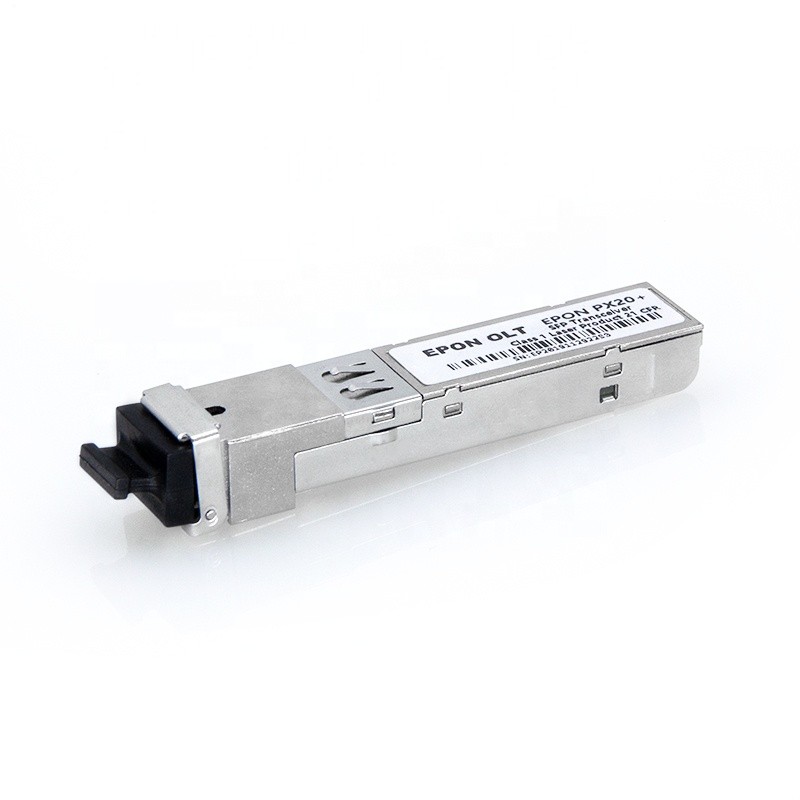

1.25G/1.25G EPON OLT SFP PX20+++ Transceiver 20KM SC Module

Introduction:

The EPON PX20+++ SFP transceiver is the high performance module for single fiber by using 1490nm continuous-mode transmitter and 1310nm burst-mode receiver.

Features:

1. Single Fiber Transceiver with single mode SC receptacle
2. 1490nm continuous-mode transmitter with DFB laser
3. 1310nm burst-mode receiver with APD-TIA
4. Single 3.3V power supply
5. Reset burst-mode receiver design
6. Burst mode signal detect output which is LVTTL compatible.
7. Burst mode received signal strength indication (RSSI) output
8. 20Km Reach 30dB link budget
9. Complies with huawei,zte,fiberhome,bdcom OLTs
10. Operating case temperature: Standard : 0 to +70°C

Technical parameters:

Technical item

Specification

EPON SFP PX20+++

1.25Gbps/1.25Gbps, Class PX20+++,

0ºC ~ +70ºC With Digital Diagnostic Monitoring

Wavelength

Tx1310nm, Rx 1490nm

Application:

Gigabit Passive Optical Networks (E-PON) – OLT side
