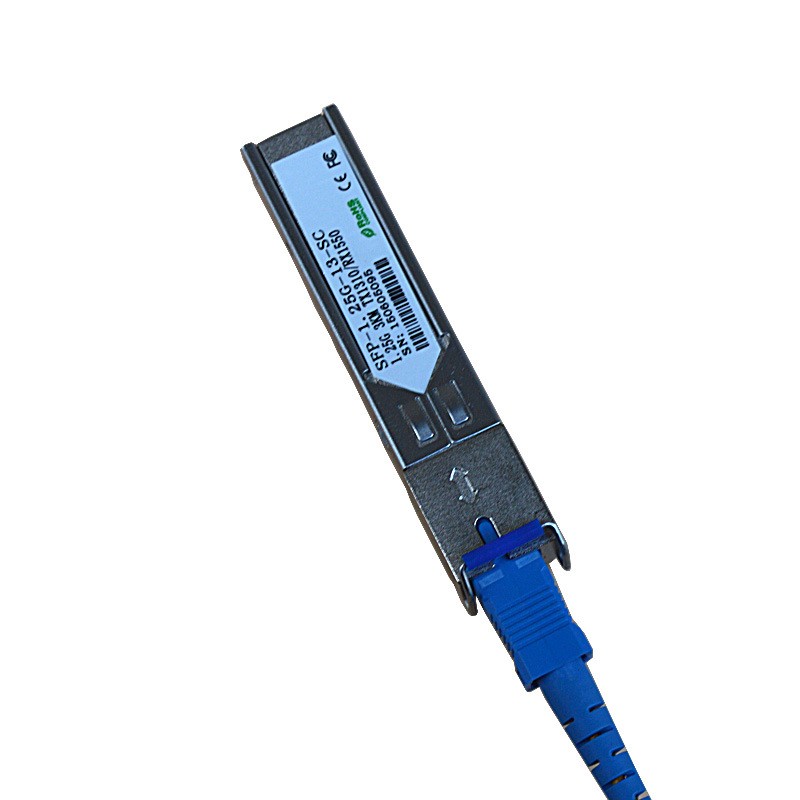

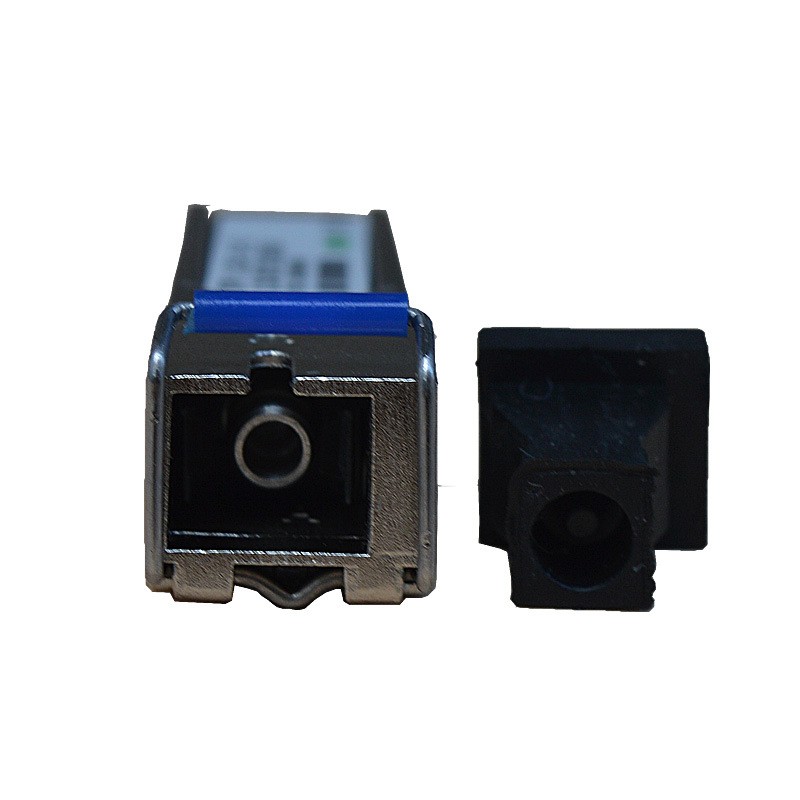

Fiber Optic SFP Transceiver 20KM

Part No.: FOCBS00156
Product Name:SFP module sm 1.25 gbt/s 20km sc interface single fiber optic module sfp
Model Number:TLG820-SFP40-GLSA/B
Data Rate:1.25Gbp/s
Fiber Type;Single Mode Single Fiber
Wavelength:TX1310/RX1550nm, TX1550/RX1310nm
Distance:20km
Fiber Interface:SC
Operating Voltage:3.3V
Operating Temperature:0-70℃
Digital Diagnostic Monitoring:Internal Calibration or External Calibration


SC Fibre Port 1.25G SFP Module Fiber SFP Transceiver 20KM

Features
►Dual data-rate of 1.25Gbps/1.063Gbps operation
►1310nm FP laser and PIN photodetector for 10km transmission
►Compliant with SFP MSA and SFF-8472
►Digital Diagnostic Monitoring: Internal Calibration or External Calibration
►Compatible with SONET OC-24-LR-1
►Compatible with RoHS
►+3.3V single power supply
►Operating case temperature: Standard : 0 to +70°C

Applications
►Gigabit Ethernet
►Fiber Channel
►Switch to Switch interface
►Switched backplane applications
►Router/Server interface
►Other optical transmission systems

Product Name	SFP module sm 1.25 gbt/s 20km sc interface single fiber optic module sfp
Model Number	TLG820-SFP40-GLSA/B
Data Rate	1.25Gbp/s
Fiber Type	Single Mode Single Fiber
Wavelength	TX1310/RX1550nm, TX1550/RX1310nm
Distance	20km
Fiber Interface	SC
Operating Voltage	3.3V
Operating Temperature	0-70℃
Digital Diagnostic Monitoring	Internal Calibration or External Calibration
Compatible Brands	HUAWEI, CISCO, JUNIPER, ZTE, D-LINK, HP, H3C, RUIJIE, DELL,...
Application	Gigabit Ethernet. Fiber Channel. Switch to Switch interface. Switched back plane applications. Router/Server interface. Other optical transmission systems
