SC Female To LC Male Hybrid Adapter

Part No.: FOCBS0069
Insertion Loss: ≤0.3dB
Durability (500 Mating):0.2dB Max.
Operating Temperature:-40℃~+75℃
Storage Temperature:-40℃~+85℃


SC/UPC (female) to LC/UPC (male)

The male-to-female fiber optic adapters inexpensively adapt connector interfaces to new equipment, upgrade distribution panels and eliminate the need to re-terminate cable assemblies.

1.Features

n Low insertion loss

n High corrosion resistance

n High interface performance

n High return loss

n Easy to handle

n Environmentally stable

2.Applications

n Telecom network

n Ethernet network

n Optical communication equipment

3.Specifications

ITEM	PARAMETER
	Single-Mode(SM-9/125)	Multi-Mode(MM-50/125) Multi-Mode(MM-62.5/125)
Insertion Loss	≤0.3dB
Durability (500 Mating)	0.2dB Max.
Operating Temperature	-40℃~+75℃
Storage Temperature	-40℃~+85℃
Remark: SC Female to LC Male Hybrid Adapter are ultra reliable components featuring low insertion loss and back reflection loss. You can select singlemode 9/125um or multimode 62.5/125um or multimode 50/125um.

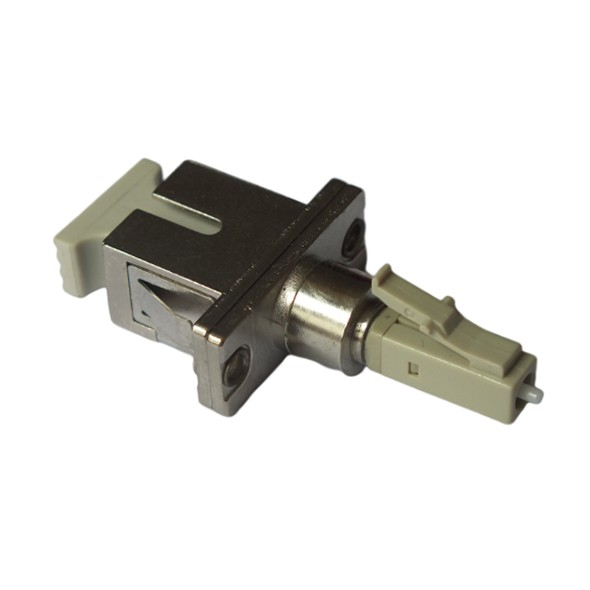

4.Photo

1625214007598-ckt-抠图.png 1625213984241-ckt-抠图.png

SC/UPC (female) to LC/UPC (male) SM SC/UPC (female) to LC/UPC (male) MM
