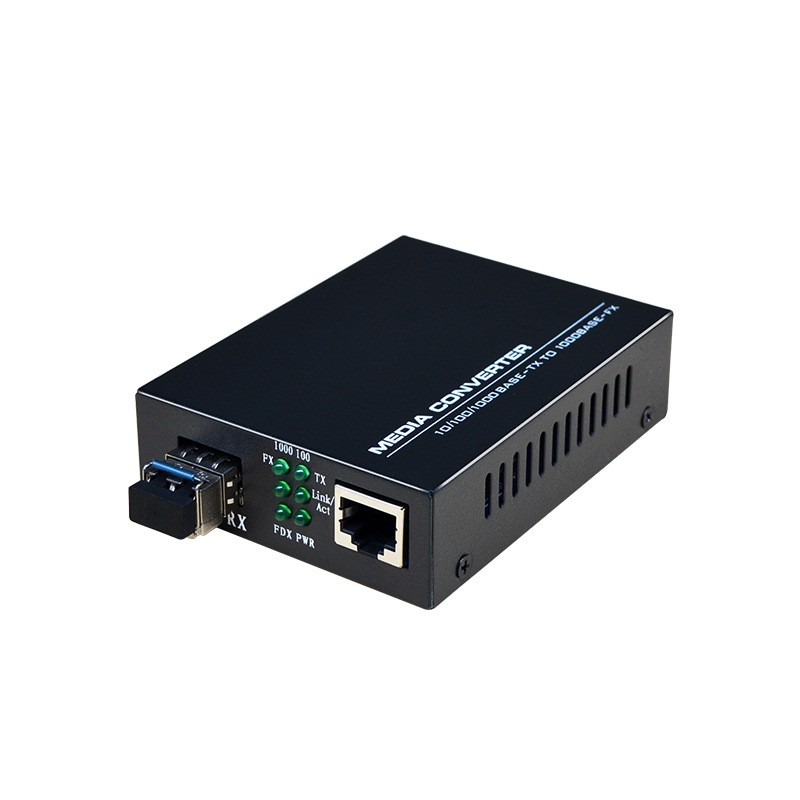

Fiber Optic SFP Media conveter 10 100 100

Part No.: FOCBS00151
Fiber Connector: SC,FC/ST Optional
Power Supply: DC5V - external power supply,
AC110/220V - internal power supply can be offered as required.
Plug kinds: Euro Standard, American Standard, UK Standard, etc
Optional Functions: LFP ( DIP Switch)

  EMAIL



1.Product Introduction

10/100/1000M adaptive fast Ethernet optical Sfp Media Converter is a new product used for optical transmission via high-speed Ethernet. It is capable of switching between twisted pair and optical and relaying across 10/100/1000Base-TX to 1000Base-FX network segments, meeting long-distance, high-speed and high-broadband fast Ethernet workgroup users’ needs, achieving high-speed remote interconnection for up to 100 km's relay-free computer data network. With steady and reliable performance, design in accordance with Ethernet standard , it is particularly applicable to a wide range of fields requiring a variety of broadband data network and high-reliability data transmission or dedicated IP data transfer network, such as telecommunication, cable television, railway, military, finance and securities, customs, civil aviation, shipping, power, water conservancy and oilfield etc, and is an ideal type of facility to build broadband campus network, cable TV and intelligent broadband FTTB/FTTH networks.



2.Technical Parameters

Technical Parameters for 10/100/1000M Adaptive Fast Ethernet Optical SFP Media Converter

Number of Network Ports

1 channel

Number of Optical Ports

1 channel

SFP Media conveter 10 100 100-2.jpg

Protocol supported

IEEE802.3/IEEE802.3U etc.

BER

< 1/1000000000

Optical Port Transmission Rate

1000Mbit/s

Operating Voltage

AC 100-220V or DC +5V

Overall Power

<3W

Network Ports

RJ45 port

Optical Specifications

Optical Port:  LC/SC (Optional)
Multi-Mode: 50/125, 62.5/125um    Single-Mode: 8.3/125, 8.7/125um, 8/125,10/125um
Wavelength: Single-Mode: 1310/1550nm; Multi-Mode: 850nm/1310nm

Working temperature

0~50°C

Storage temperature

-40°C~70°C

Product size (L*W*H)

94mm*70mm*22mm

Packing size (L*W*H)

165mm*130mm*45mm

N.W/G.W(kg)

0.12kg/piece  0.255kg/piece
